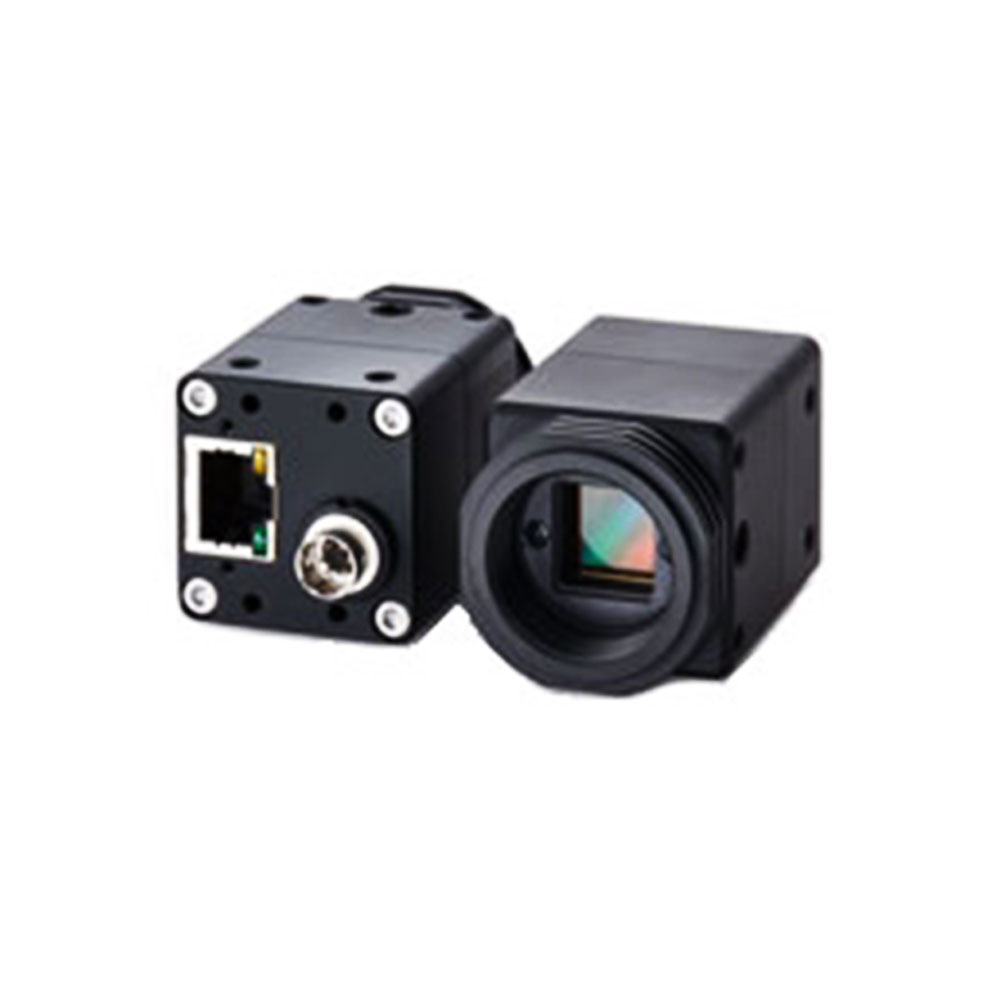

Omron Sentech GigE/USB Based Cameras

Model No

STC-MB133USB

Image Sensor

1/3” Interline SXVGA Monochrome Progressive CCD: ICX445AL (Sony)

Total Picture Element

1348 (H) x 976 (V)

Effective Picture Element

1280 (H) x 966 (V)

Chip Size

6.26 (H) x 5.01 (V) mm

Cell Size

3.75 (H) x 3.75 (V) µm

Scanning System

Full scanning, Variable ROI

Resolution

1280 (H) x 960 (V) (Full Scanning) 1280 (H) x 440 (V) (1/2 Partial Scanning) 1280 (H) x 168 (V) (1/4 Partial Scanning)

Scanning Methods

Full Scanning, 1/1 Partial Scanning, 1/2 Partial Scanning, 1/4 Partial Scanning, Variable Partial Scanning, Binning Scanning, Binning 1/1 Partial Scanning, Binning 1/2 Partial Scanning, Binning 1/4 Partial Scanning, Binning Variable Partial Scanning

Maximum Frame Rate

-

- Full Scanning

22.40 fps (Normal) / 11.20 fps (1/2 clock) / 5.60 fps (1/4 clock)

- 1/2 Partial Scanning

44.81 fps (Normal) / 22.40 fps (1/2 clock) / 11.20 fps (1/4 clock)

- 1/4 Partial Scanning

89.80 fps (Normal) / 44.90 fps (1/2 clock) / 22.45 fps (1/4 clock)

Pixel Frequency

36.818 MHz (Normal) / 18.409 MHz (1/2 clock) / 9.20453 MHz (1/4 clock)

Video Output

8bit / 10bit / 12bit

Minimum Scene Illumination

0.15 Lux @ F1.2

Sync System

Internal

Electronic Shutter

Auto / Manual (Software Selectable)

- Normal

1/36,818,182 ~ 1/22.40 Seconds

- 1/2 Clock

1/18,409,091 ~ 1/11.20 Seconds

- 1/4 Clock

1/9,204,545 ~ 1/5.60 Seconds

Gain

Auto / Manual (Software Selectable)

Gamma

Manual (Software Selectable)

White Balance

-

Trigger Mode

Free-run / Edge Preset Trigger / Pulse Width Trigger / Start & Stop Trigger (Software Selectable)

Input / Output

USB 2.0 High Speed

Power

-

- Input Voltage

+5 Vdc through USB connector (+4.4 ~ +5.25V)

- Consumption

< 300 mA

Dimensions

28 (W) x 28 (H) x 37 (D) mm (excluding connector)

Lens Mount

CS Mount

Weight

Approx. 45g

Interface Connector

USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent)

Temperature

-

- Operational

0 ~ 40°C

- Storage

-30 ~ 65°C

Vibration

20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each

Shock

Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each

Standard Compliancy

EMS: En61000-6-2, EMI: EN61000-6-3 (Class B)

RoHS

RoHS Compliant
